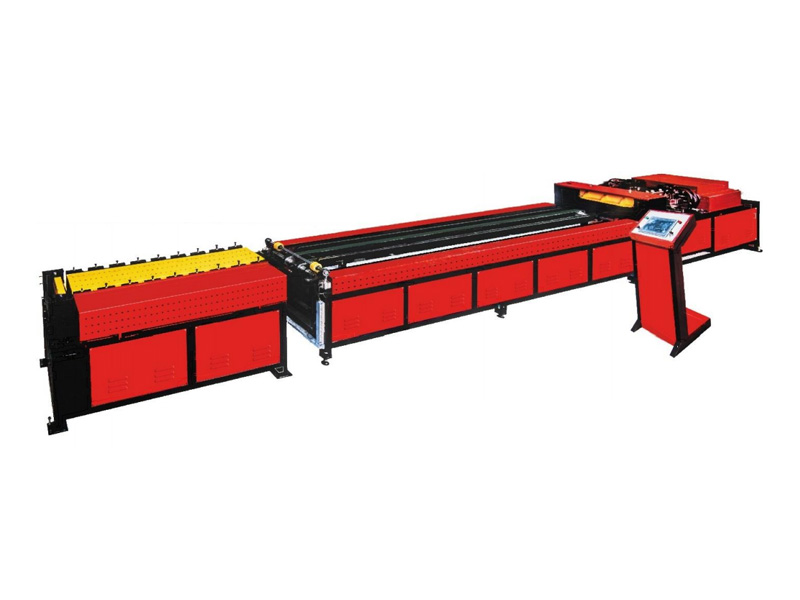

Product Description

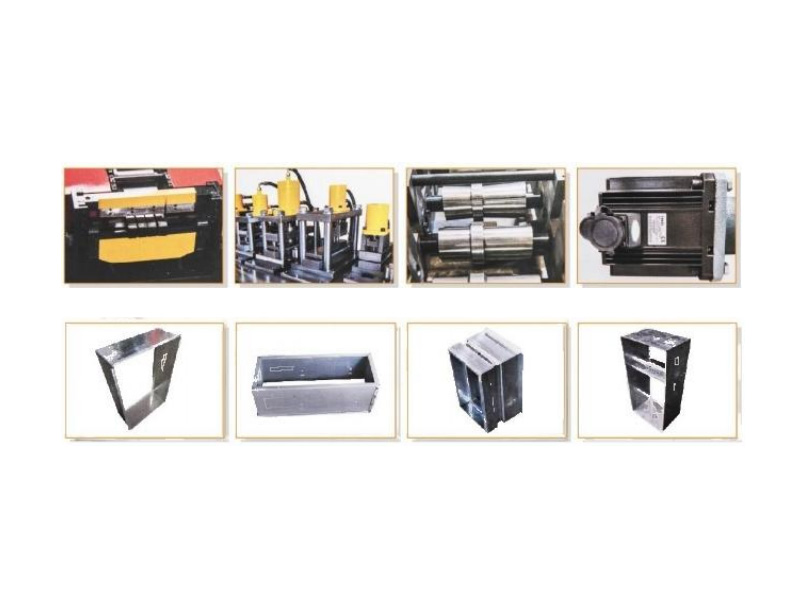

1.Non-Powered Feed-in Rack(Qty:1)

2.Leveling Device (Qty:1)

3.Large/Small  Opening  Punch  Die(Qty:2  each)

4.Mechanical Hole Punch Die(Qty:1)

5.Baffle Fixing Hole Punch Die(Qty:1)

6.Hydraulic Shearing Device(Qty:1)

7.Feed-in  Platform(Qty:1)

8.External Frame Forming Machine(Qty:1)

9.Hydraulic Rolling Device (Qty:1)

10.CNC Control System(Qty:1)

11.Hydraulic System(Qty:2)

Parameter

technical parameter

Plate Thickness

Galvanized Sheet,1.5-2.0mm

Coil Width

245mm/265mm

Material Weight

≤3000kg

Line Speed

≤15m/min Adjustable

Plate Length Error

±0.5mm/m

Punch Centerline Error

±0.3mm/m

Valve-body Bending Error

±0.8mm/m

Processing

Decoiling/Fragmenting/Square Shaping/L Shaping/U Shaping

Controlling

Panasonic PLC,Japan

Electric Elements

First-rate Brand In China Or Other Countries

Dimensions

12000×1000x1200mm

Total Weight

4500kg

Total Power

18kw
