Product Description

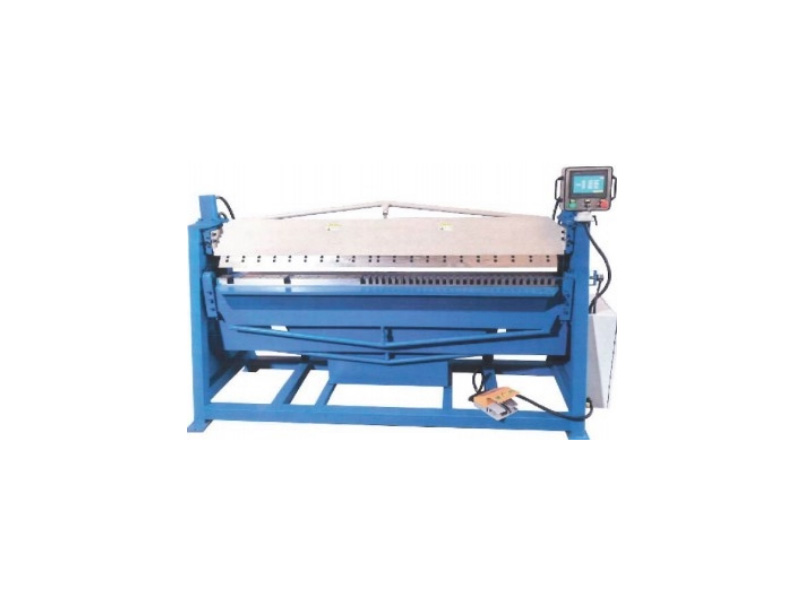

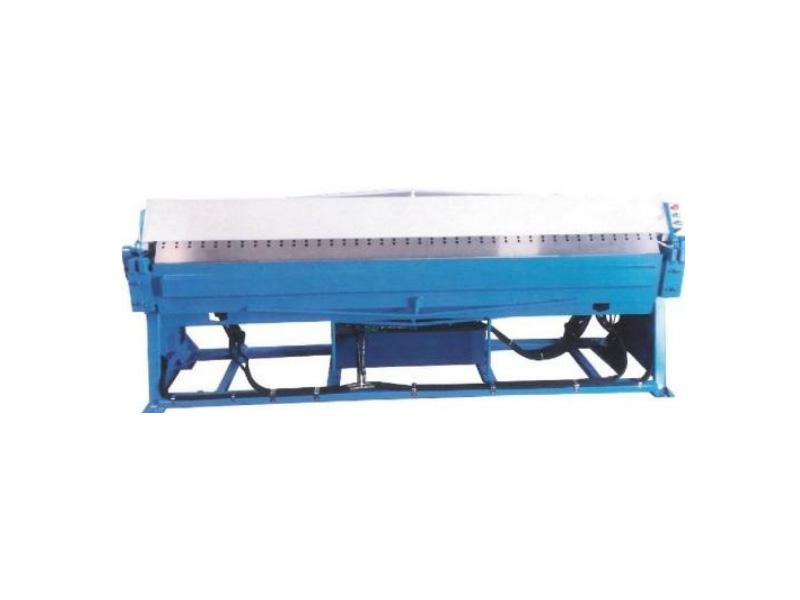

For over 20 years,folding machine becomes one of our hit products,which proves to be very mature and reliablelt comes into being serialization,including  hydraulic,pneumatic,manual,which offers customers  many choices.There are diferent  upperpressing  blades: high blade (group),low blade(single),round blade,are blade and boot shaped blade,and the upper pressing blade and folding blade are convenient to be adjusted.


Parameter

Model

Folding Capacity(mm)

Minimum Folding Angle(°)

Lift-off Beam(mm)

Motor(kw)

Weight(kg)

Size(L.W.H)(mm)

FD-1300

2.5x1300

55

160

2.2

800

2000×1000×1600

FD-2000

2.5×2000

55

160

3.0

1200

2700×1000×600

FD-2500

2.5×2500

55

180

5.5

1500

3500×1000×1600
