Product Description

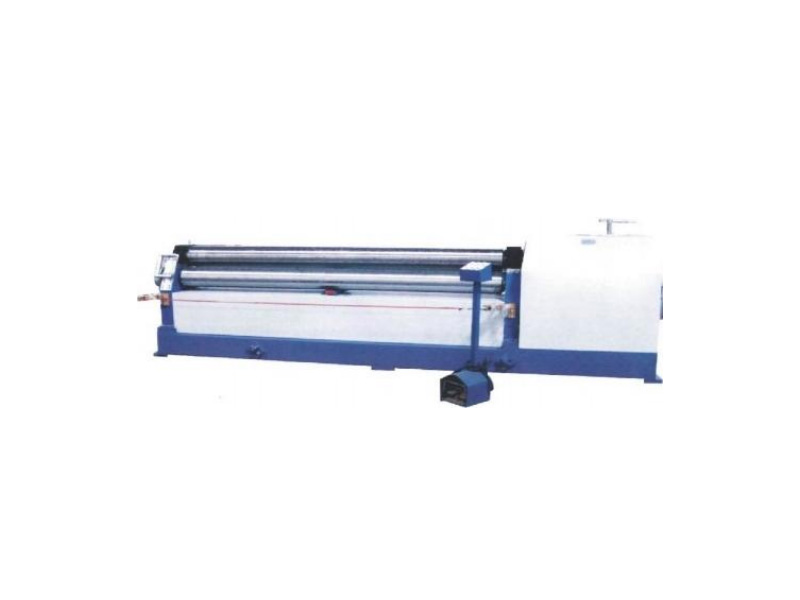

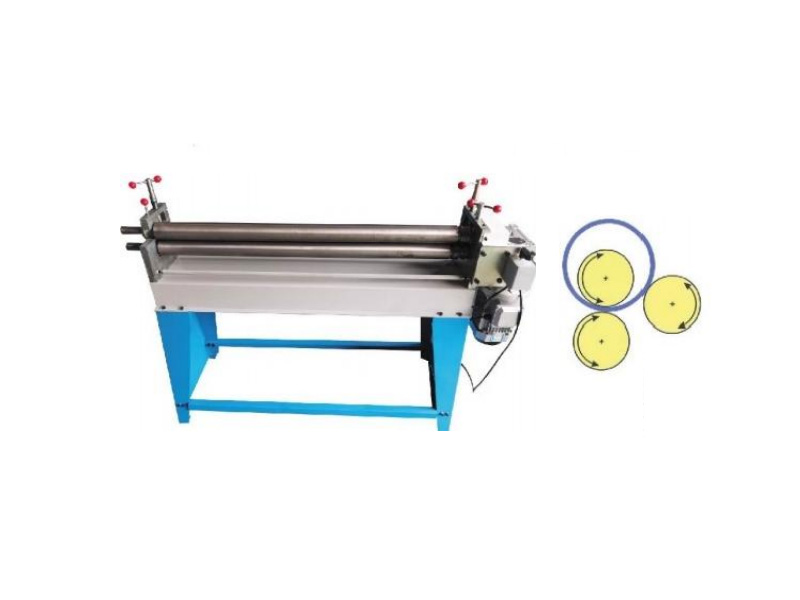

A 3-roll late bending machine is a core metalworking device designed to shape fat metal plates into cylindrical,conical,or curved  workpieces through three synchronized rols.Its key function lies in the coordinated rotation and adjustment of the upper roll and two  lower  rlls:the  lower  rolls  provide  driving  force  to  feed  the  plate,while  the  upper  roll  applies  downward  pressure  and  adjusts  its position to control the bending radius.Unlike 2-roll machines,it eliminats the need for pre-bending the plate ends,enabling one-step  forming of complete circular or curved parts with high precision and consistency.

Parameter

Model

Rolling Capacity (mm)

Roller Diameter (mm)

Min Rolling Diameter (mm)

Motor (kw)

Weight (kg)

Size(L×W×H) (mm)

FDW-1250A

1.5×1250

72

88

1.5

190

1700×640×830

FDW-1530A

1.2×1500

72

88

1.5

230

2200×640×1100

FDW-2000A

1.5×2000

100

150

1.5

400

2500×690×860

FDW-2500A

1.5×2500

140

200

23

600

3200×730×1060

FDW-4x1300B

4.0×1300

124

250

2.2

470

2250×570×1000

FDW-4x2000B

4.0×2000

142

300

3.0

2000

3100×560×1200

FDW-6x2500B

6.0×2500

165

450

5.5

2700

3600×1100×1100
