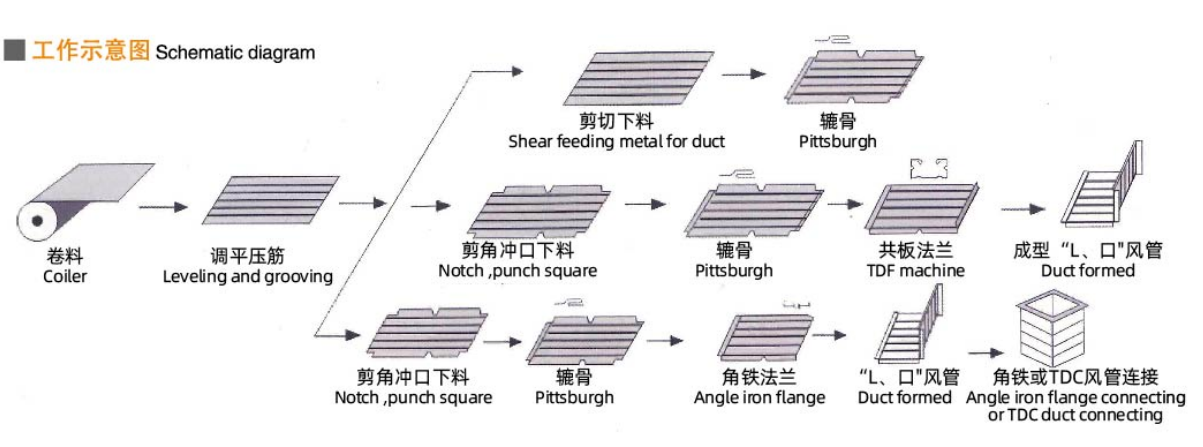

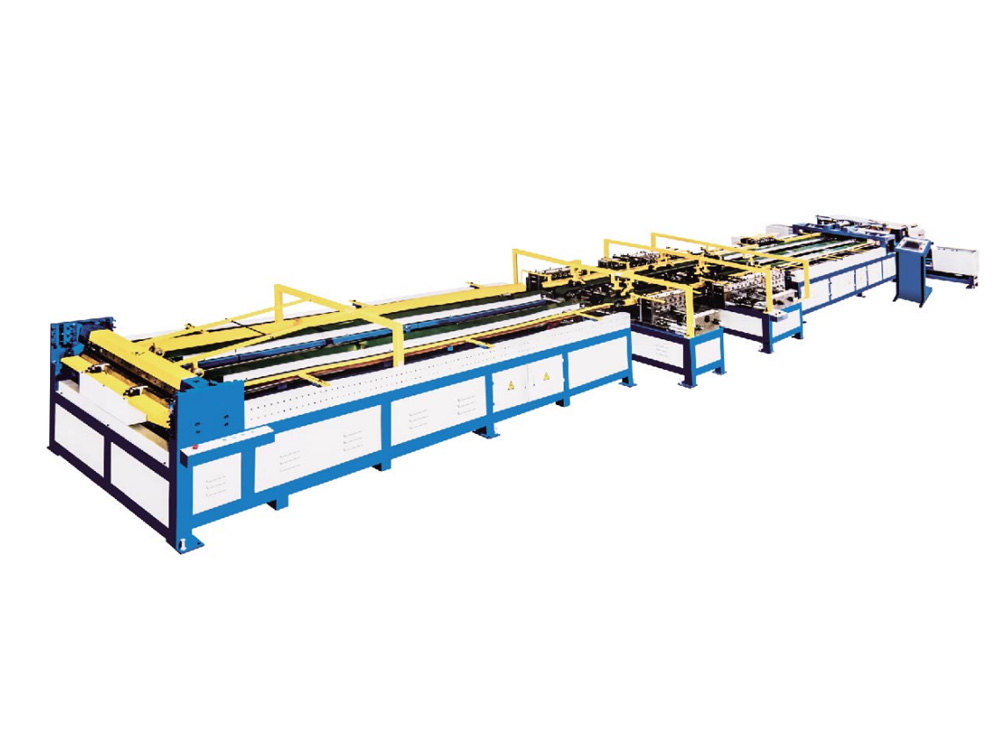

The Auto Rectangular Duct Machine Line 5 is designed for efficiently processing standard straight pipes. With a user-friendly setup, simply input the duct dimensions, and this machine will automatically handle the entire production process. From coiled material decoiling and leveling to length measuring, punching square openings, fixed-length shearing, joint angle nipping, and hydraulic folding, all operations can be completed with just 1-2 operators monitoring the system.
Streamlined Design: The linear layout minimizes space requirements and allows for simple installation, making it ideal for small and medium-sized manufacturers.
High Production Capacity: Achieve a daily production of over 1,500 square meters with an automatic material-saving mode that eliminates waste.
Fully Automatic Production: Only requires 2-3 operators for efficient operation.
High-Performance Lift-Type Nipping Machine: Ensures precise and consistent nipping.
Fast Processing: Produces L-type wind tubes in just 26-28 seconds per piece.
Innovative Design: New shaping and molding techniques guarantee excellent flange straightness without damaging the zinc coating.
Compact Footprint: Covers an area of 28 x 4 m.
The Auto Rectangular Duct Machine Line 5 revolutionizes your production capabilities with speed, precision, and reliability. Contact us today to learn more or request a personalized quote!

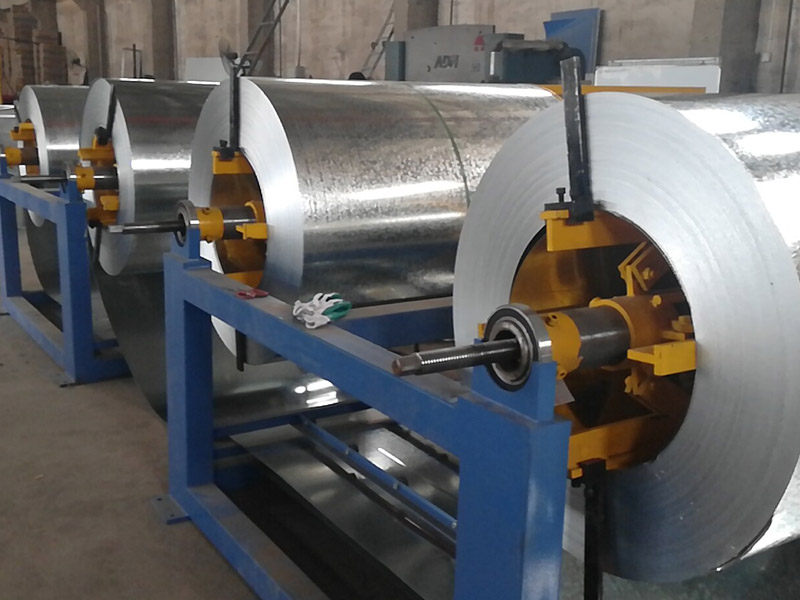

1. Two sets of electric feeding machine frame (four internal-shoring material cores)
2. One suit of leveling compact bar equipment
3. Four suits of hydraulic pressure attack angle molding
4. One suit of reinforced hole molding (optional)
5. Two suits of flange hole molding (optional)
6. One suit of hydraulic pressure shear plate equipment
7. One set of lift type displacement nipping machine

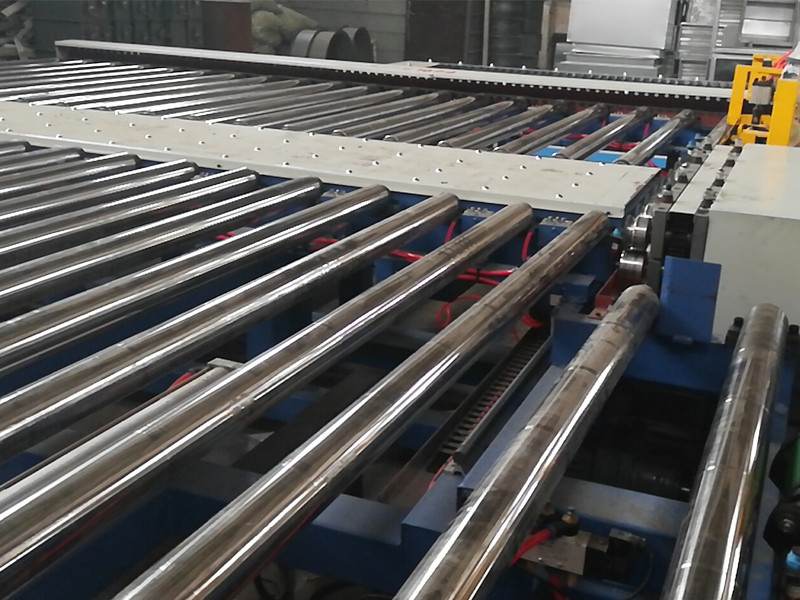

8. One set of feeding platform
9. One set of double connection common plate flange machine
10. One set of double connection angle steel flange machine
11. One suit of digital controlling system
12. Two suits of hydraulic pressure system
Model | Capacity inmild-eseel thickness range(mm) | Max-working speed(m/min) | Max-width standard(mm) | Coiler max-weight standard(kg) | Dimension(mm) | Weight(kg) | ||
L(mm) | W(mm) | H(mm) | ||||||
FAML-V | 0.5-1.2 | 10 | 1250 | 6500 | 26000 | 3600 | 1500 | 20000 |
FAML | 0.5-1.2 | 10 | 1500 | 6500 | 26000 | 4000 | 1500 | 24000 |
