OUR PRODUCTS

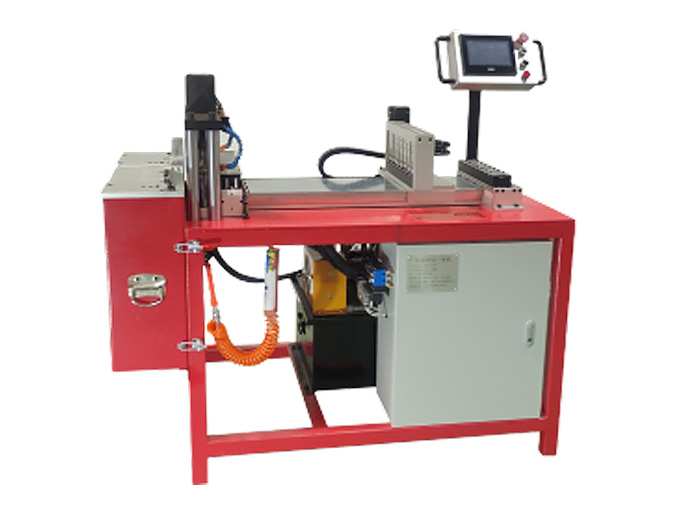

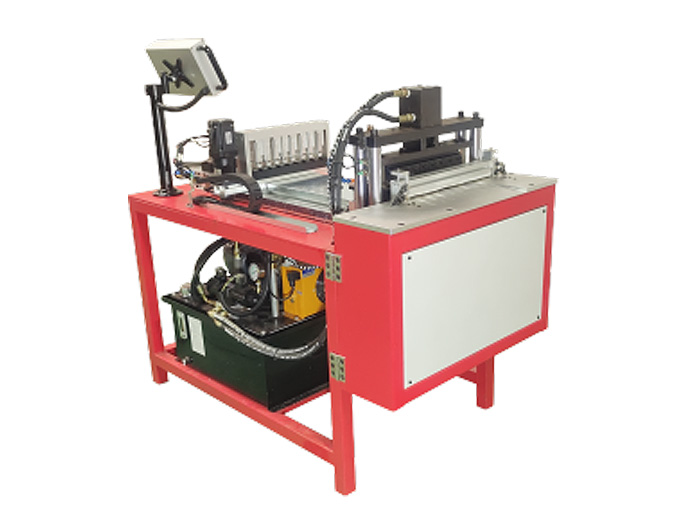

Multi-function automatic punch is a new type of equipment independently developed to solve the problems of high safety hidden trouble, low machining accuracy and poor production efficiency of traditional electric punch. It is suitable for punching and cutting all kinds of aluminum alloy and ABS plastic steel profiles, and can quickly complete the blanking work of batch or bulk size.
PRODUCT FEATURES

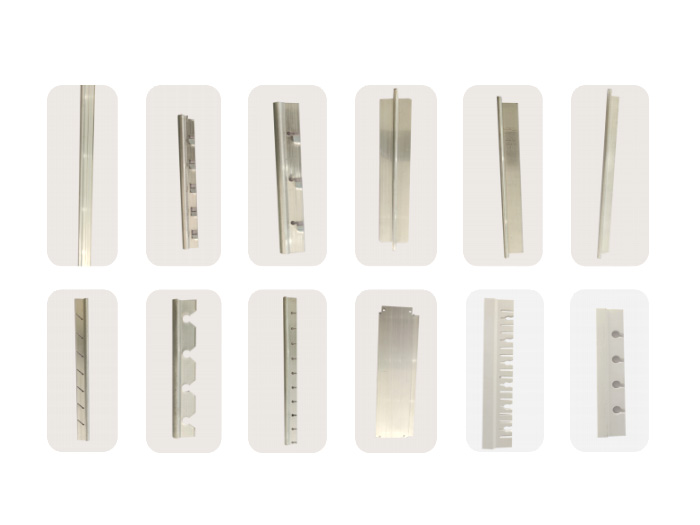

According to the samples or drawings provided by users, we can match molds and punch various conventional air outlet cards, air return cards and blades, and we can also customize non-standard process molds according to requirements to realize efficient and safe production punching processing.Using PLC control system, the operation is simple and the punching accuracy is guaranteed.There is no need for manual intervention in the production process, which reduces the risk of employment.
Equipment type | Single cylinder 4-8 slots (optional) | Double cylinder 4-8 slots (optional) |
Feeding mode | Servo motor feeding | |
Equipment function | For punching and cutting air outlet cards, air return cards and blades | For punching and cutting air outlet cards, air return cards, blades, herringbone gate frames, square diffuser brackets |
Operating voltage | 380V (Three-phase four-wire) | 380V (Three-phase four-wire) |
Rated power | 4.5KW | 4.5KW |
Air source pressure | 6 kg (0.6MPa) | 6 kg (0.6MPa) |
Fuel tank capacity | 65L | 65L |
Equipment size | 1.4m long x 0.9m wide x 1.3m high | |
