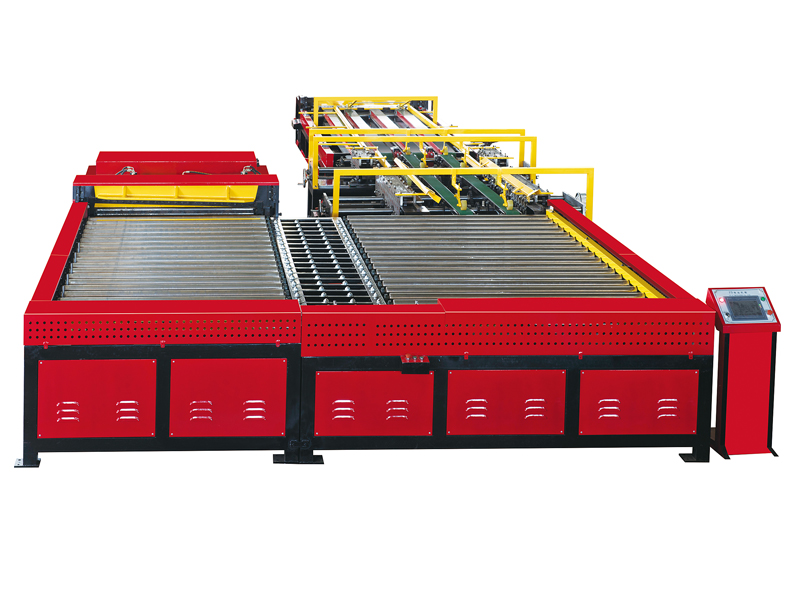

This Auto square air duct line 6 machine U shape is mainly used for the processing of square air ducts standard straight pipe, it only needs to input square air ducts dimensions, then the production duct line could automatically complete coiled material decoiling. leveling. compacting bar, length measuring, punching square opening. ficed length shear,joint angle nipping,double sides angle steel flange or common plate flange molding,and hydraulic pressure automatic folding square,all of its procedures will be automatically completed with only 1-2 people monitoring operation.
The production line presents a U type layout,with small covering area,convenient installation. It is suitable for application of small and medium-sized manufacturerswith fast speed and high efficiency,as well as a daily production of wind tube above 2, 000 square meters. This production line has automatic materials saving mode,without any waste for processing plates.
PARAMETERN
Auto square air duct line 6 machine U shape
1. Two sets of electric feeding machine frame (four intemal-shoring material cores)
2. One suit of leveling compact bar equipment
3. Four suits of hydraulic pressure attack anglemolding
4. One suit of reinforced hole molding (optional)
5. Two suits of flange hole molding (optional)
6. One suit of hydraulic pressure shear plate equipment
7. One suit of No. 1 feeding platform and aerodynamic pushing mechanical hand
8. One set of fixed nipping machine
9. One suit of No. 2 feeding platform and aerodynamic pushing mechanical hand
10. One set of double connection common plate flange machine
11. One set of double connection angle steel flange machine
12 One suit of digital controlling system
13. Two suits of hydraulic pressure systems
Auto square air duct line 6 machine U shape
Automatic production of square air ducts with fast speed and high efficiency. Only 2-3 people can complete the production of air ducts.
L type square duct production only need 20-23 seconds/piece
All new design for molding good flange straightness
Without abrading for the zinc coating of duct rectangular
